Replay (Teradek) - Change Video Output Bit Rate

Replay (Teradek) - Change Video Output Bit Rate

  1. Close all open Chrome windows. Press the "Windows Key" and the taskbar will come up. Right click on the Chrome windows to close. If two Chrome windows are open you will need to repeat this step for the second window.
  2. Press the "Windows Key" and launch a Chrome browser and input 10.0.0.100 in the URL box, and press Enter.

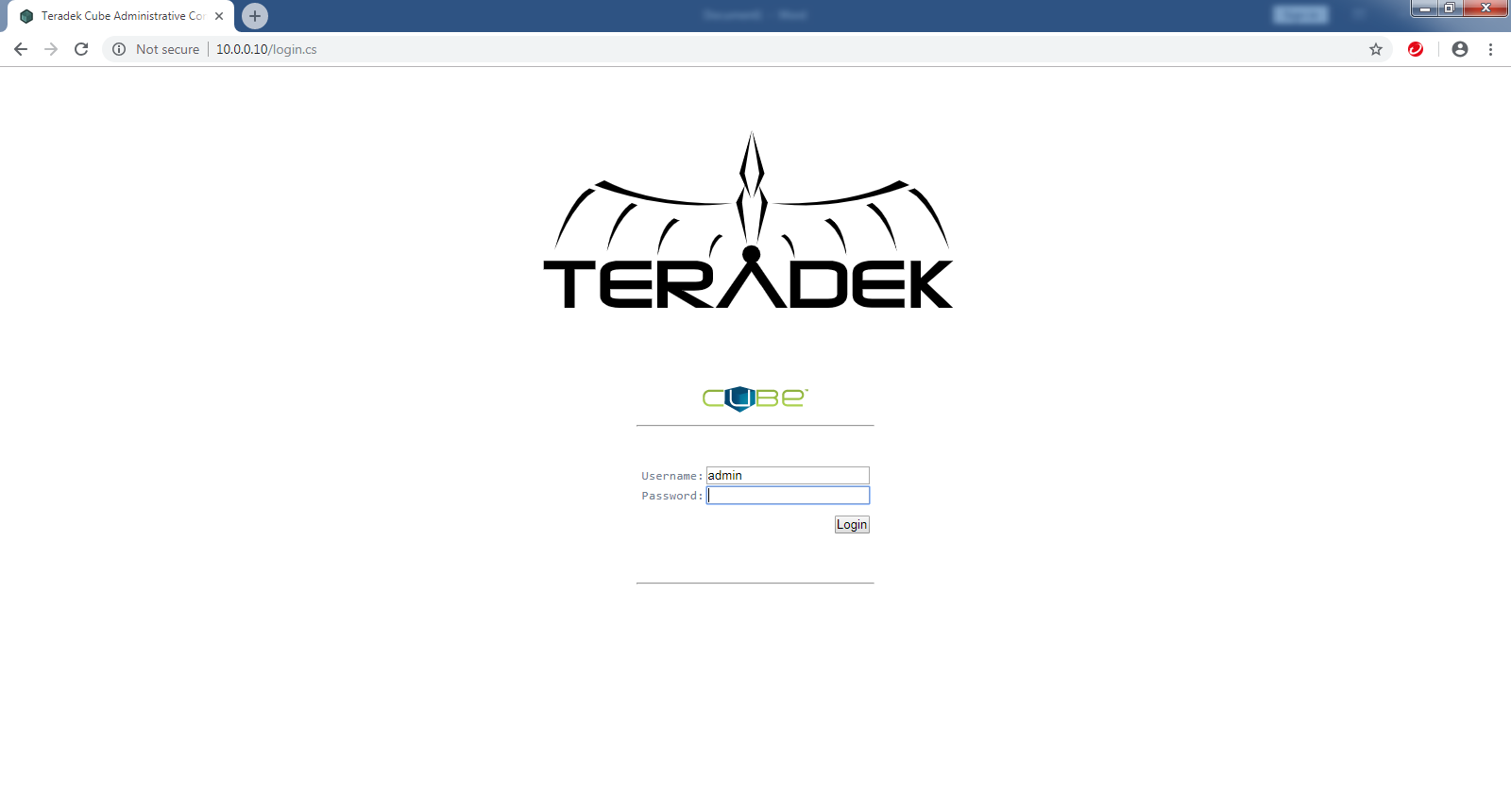

  3. The below screen will come up. Input the below information and click on "Login".
    1. Username = admin
    2. Password = Solutions8

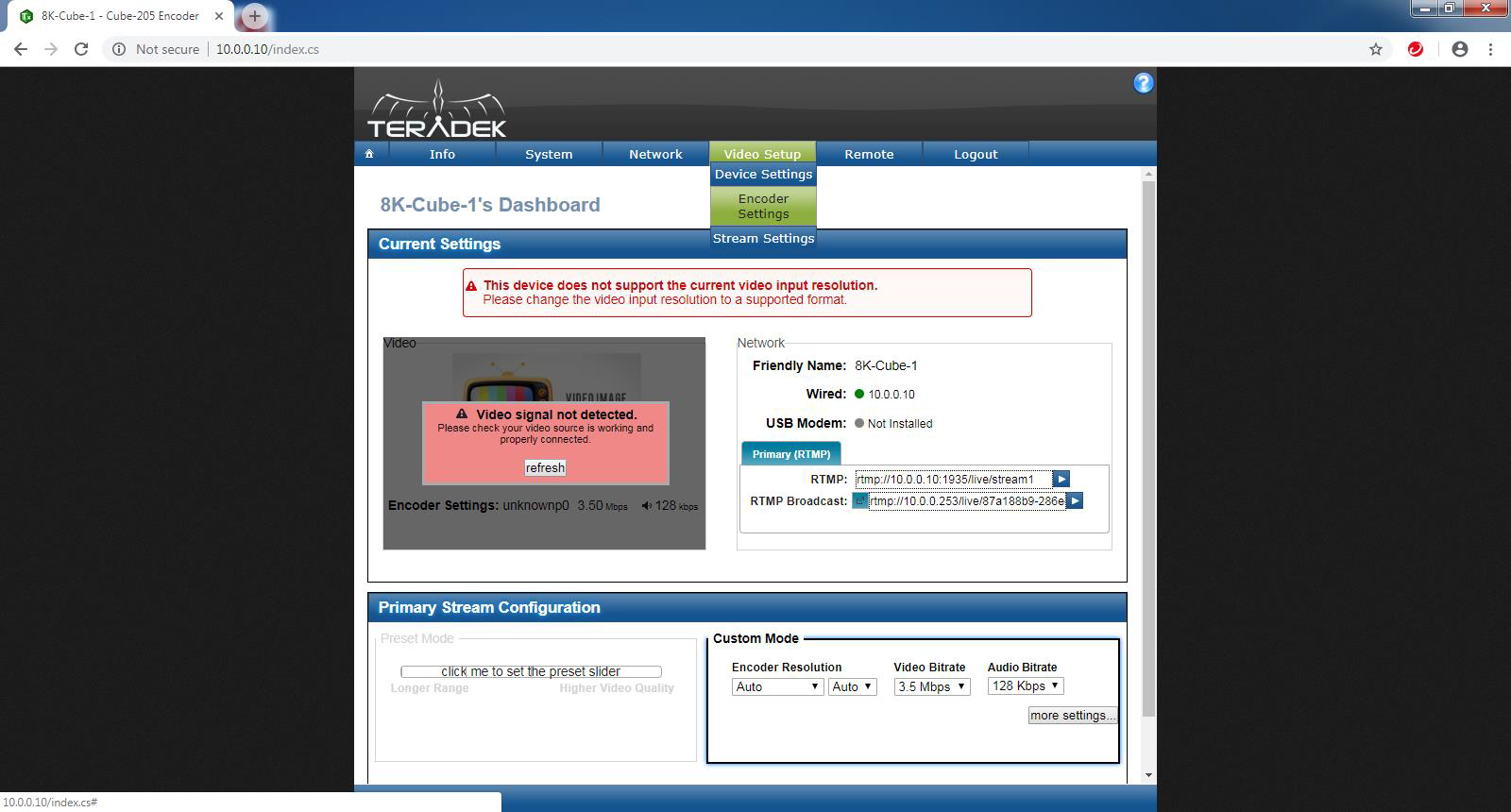

  1. The following window will appear after logging in. Mouse over "Video Setup" to drop down menu options and select "Encoder Settings".

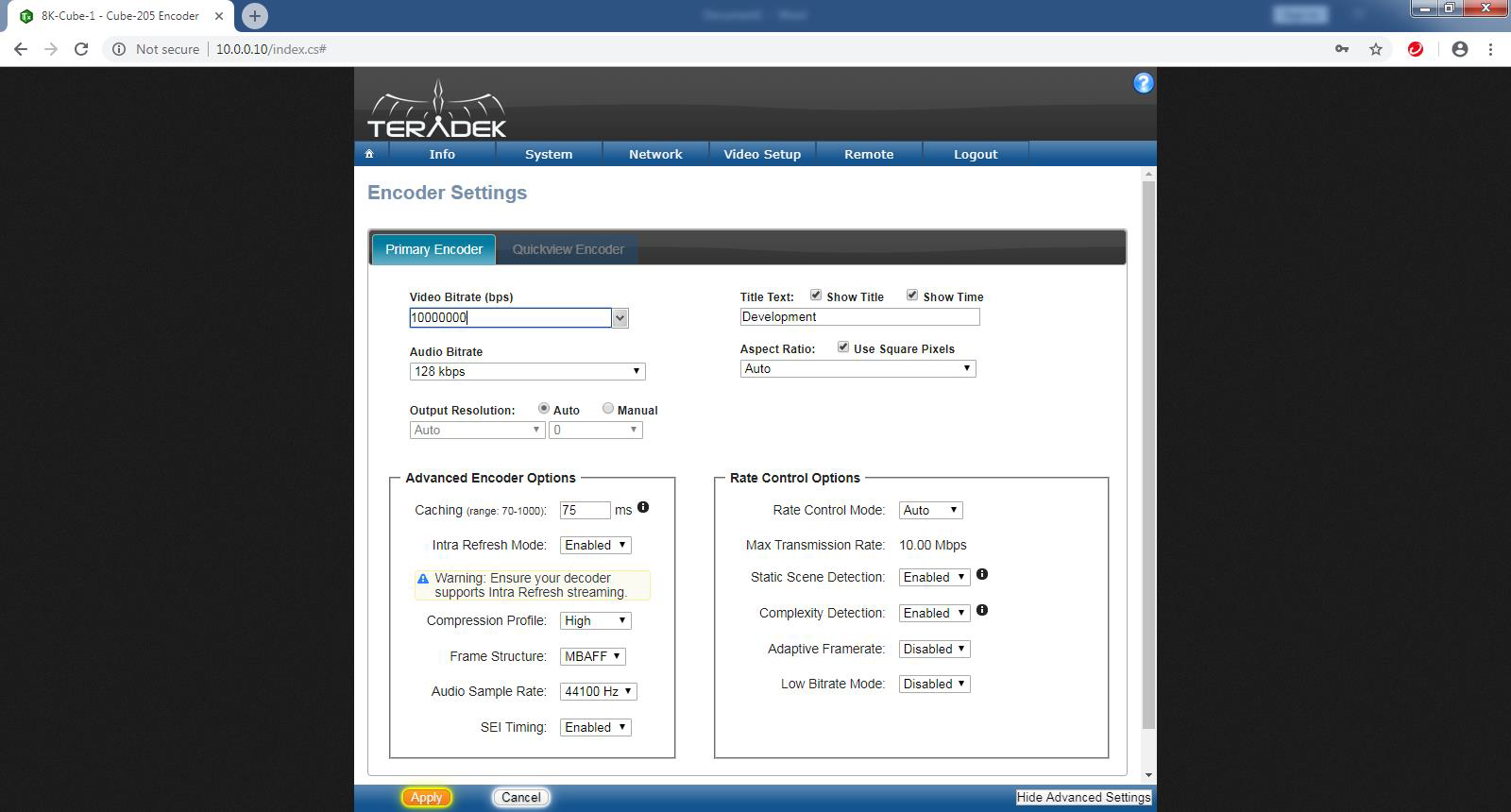

  1. The Encoder Settings window will be displayed. Change the Video Bitrate to 10Mbps.

  1. When 10Mbps is selected for the Video Bitrate, click on the "Apply" button on the bottom left of the screen.

  1. You will see "Please Wait" on the top right of the screen while the new settings are being sent. Takes approximately 5-10 seconds.
  2. When completed, click on the "Logout" button on the top right.
  3. Restart the computer system.
