Camera Shooting Quick Guide (For Panasonic Cameras)

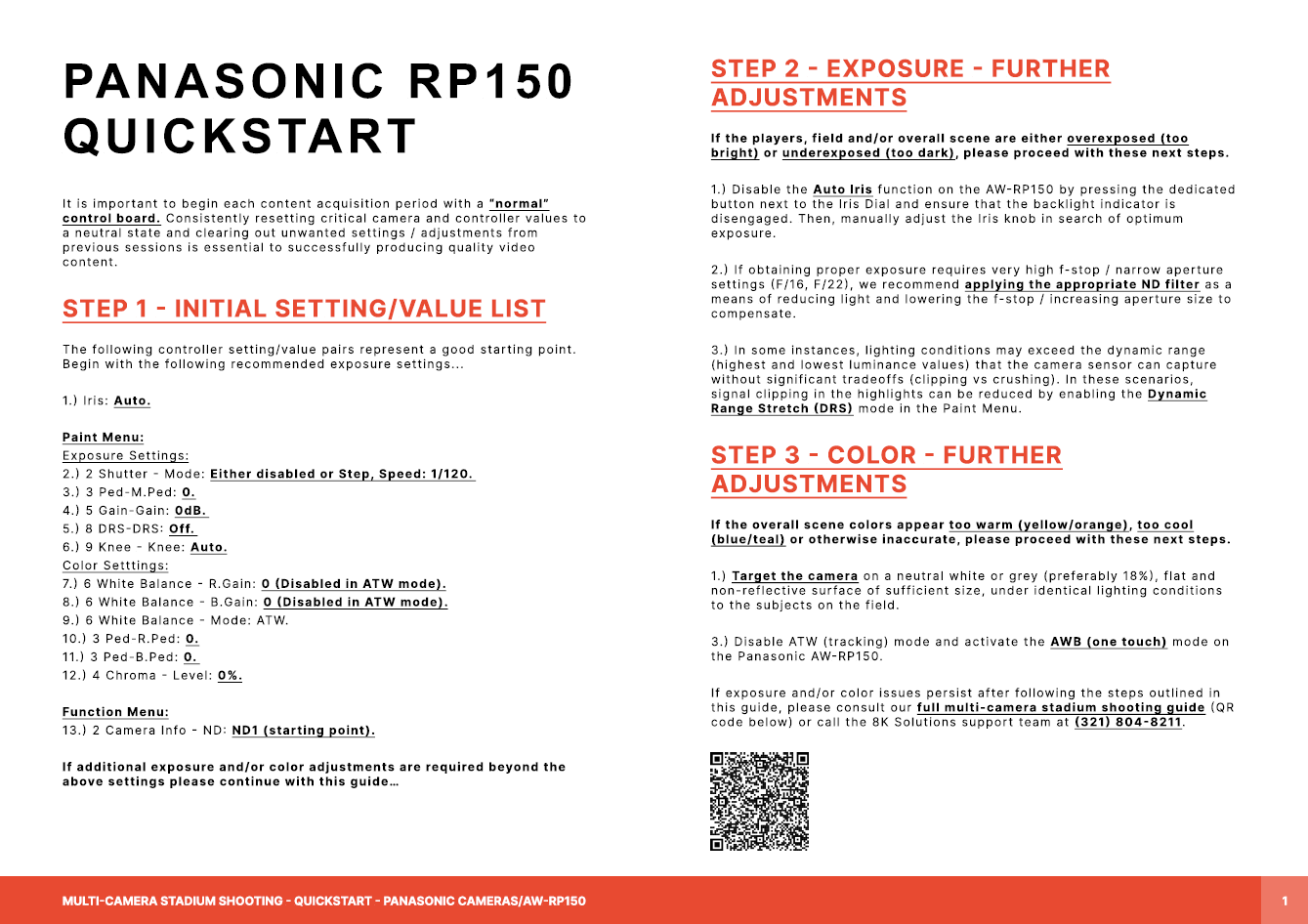

Below is a PDF file for a Panasonic Camera Quick Guide
Related Articles
Multi-Camera Stadium Shooting Guide (For Panasonic Cameras)
Here is a link for the full Multi-Camera Stadium Shooting Guide: Multi-Camera Stadium Shooting Guide (Panasonic)Camera Shooting Quick Guide (For Bolin Cameras)
Below is a PDF file for a Bolin Camera Quick GuidePanasonic Camera Voltage Ranges
The following is a list of the Panasonic cameras provided by 8K and what the acceptable voltage ranges are for each: PANASONIC UR-100 (12V-21.8VDC/3.1A-5.5A) PANASONIC UE-100 (10.8V-13.2VDC/3A) PANASONIC UE-150 (10.8V-13.2VDC/4A) PANASONIC AW-130 ...Multi-Camera Stadium Shooting Guide (For Bolin Cameras)
Here is a link for the full Multi-Camera Stadium Shooting Guide: Multi-Camera Stadium Shooting Guide (Bolin)RP-120 Controller - Unable to control camera
1) First power cycle both the camera and controller 2) If that doesn't fix the issue, press button 36 CTRL TYPE and make sure CAM 1 is set to "Serial" 3) Also make sure that the 422 cable connecting into the controller is in Port 1 (But not the LAN ...
