(OLD) mastRcam - Issues with freezing video on HD-100

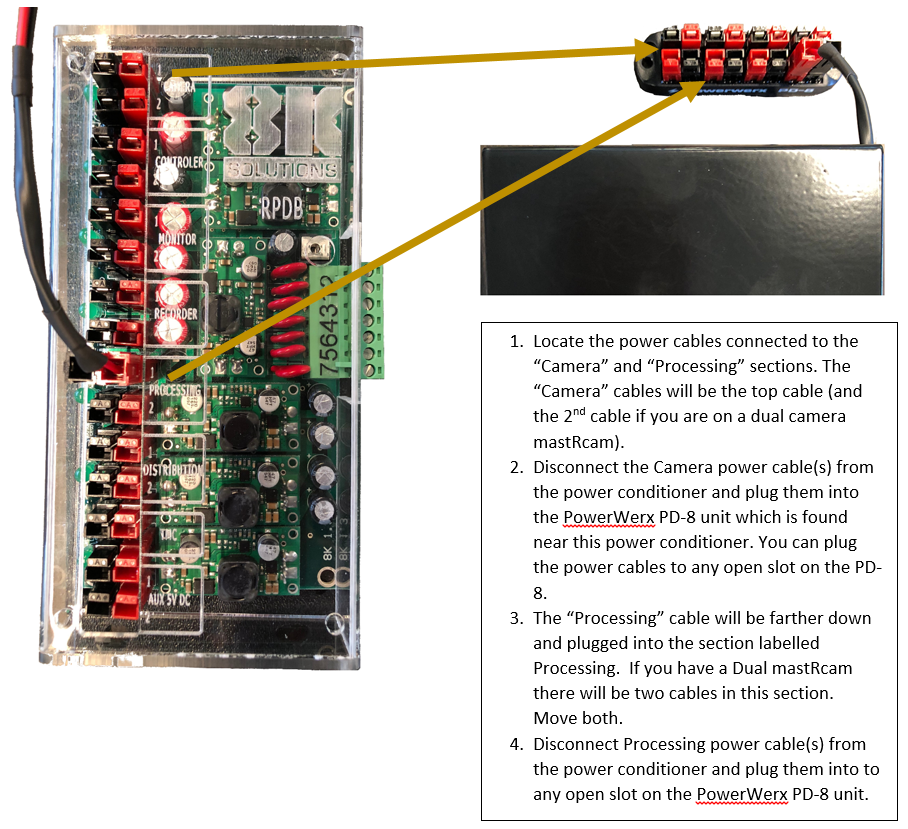

This is an issue where the power conditioner is causing voltage fluctuation issues that the HD-100 cannot handle and causes the video to freeze. A quick fix is to barrel around the HD-100, but a more permanent solution is:
