mastRcam SC (During Practice) - Using the HD-100 Tilt Controller

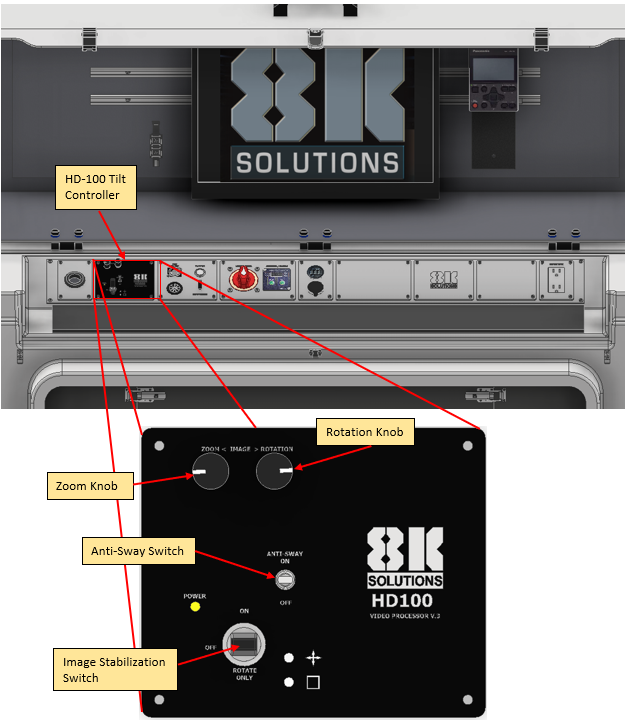

On the Dashboard, you can use the HD-100 Image Processor Tilt Controller if you need to add image stabilization during windy days or rotate the image if you are unable to achieve perfect level with the mastRcam SC. The images below show what the Tilt Controller looks like for a mastRcam SC.
The Image Stabilization switch needs to be either ON (Up position) or ROTATE ONLY (Down position) in order for the Zoom and Rotation knobs to adjust your picture. If the switch is in the middle position, then the image stabilization will be turned off.
Turn on Anti-Sway if it’s windy enough to cause the mast to sway, and this will help stabilize the image.
