mastRcam SC (During Practice) - Using Color Bars on UMR-20 Recorder

mastRcam SC (During Practice) - Using Color Bars on UMR-20 Recorder

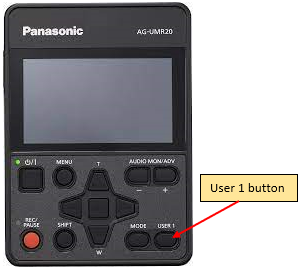

To display color bars on your display, you’ll use the Panasonic UMR-20. Simply press the [User 1] button on the recorder and it will show color bars on the recorder’s display as well as the monitor.

If this does not work, you can assign the User 1 button to display color bars by:
1. Press the [Menu] button on the UMR-20
2. Select “User SW” from the menu
3. Select “User 1”
4. Assign this button to “Bars”
