Lyvve Coach - Hardware Components

Lyvve Coach - Hardware Components

The following graphics show the various hardware components of the Lyvve Coach trailer:

LYVVE COACH TRAILER





LED BOARD

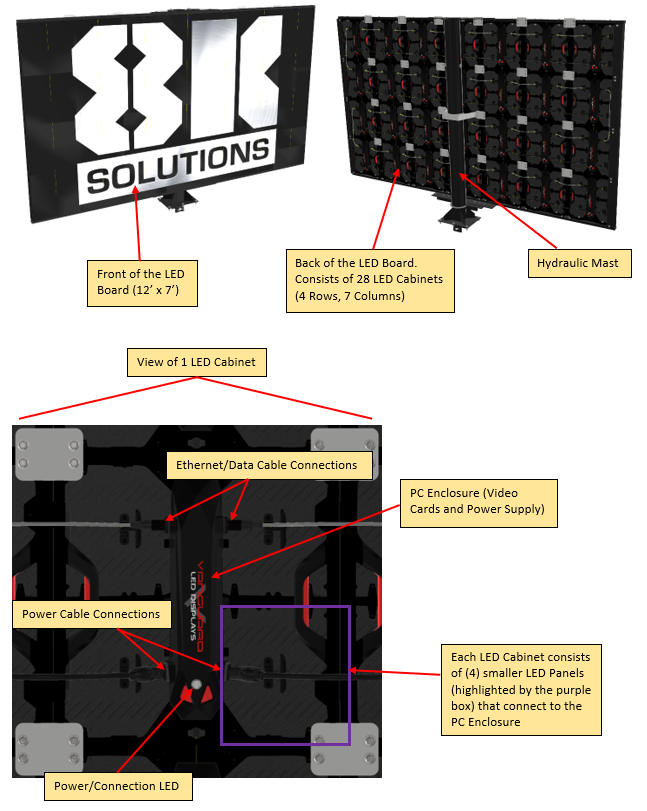

The image below shows the front and back of the 12' x 7' LED board as well as a close up of an individual LED cabinet:
