Lyvve Coach - Connecting 8K Replay

To connect the 8K Replay case to the Lyvve Coach’s Connection Panel, the basic flow is to have a video source (Camera, mastRcam, etc) connected to the 8K Replay case, then connect the 8K Replay Case to the Lyvve Coach.

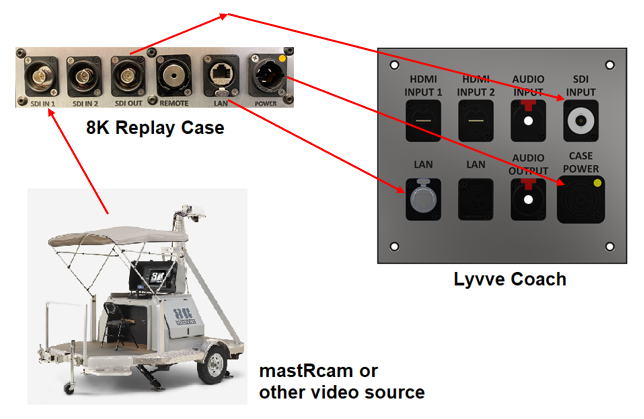

Below is a diagram showing the signal flow:
