JVC LP100 Controller

JVC LP100 Controller

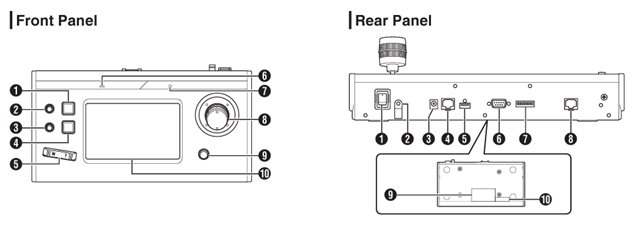

Front Panel
1. USER1 button – For switching the settings menu.
2. F1 knob – Used for the multi-function settings.
3. F2 knob – Used for the multi-function settings.
4. USER2 button – For switching the settings menu.
5. Zoom lever – For performing the zoom operation of the remote camera.
6. ALARM light – Lights up red when the alarm is activated.
7. POWER light – Lights up green while the power is turned on.
8. Control lever/joystick – For operating pan/tilt of the remote camera.
a. Twist the joystick to use for the multi-function settings for F3 settings.
9. Focus knob – For performing the focus operation of the remote camera.
a. Push to activate the one-push auto focus function.
10. Operation panel – Used as a touch panel.
Rear Panel
1. Power switch – For turning the power ON or OFF.
2. Wire clamp – For preventing the AC adapter cable from falling out.
3. DC 12V terminal – For connecting the supplied AC adapter.
4. LAN terminal – For connecting an ethernet cable to control a camera.
5. SERVICE terminal – For use during servicing such as performing firmware updates.
6. TALLY terminal – Used for TALLY connection.
7. SETTING switch
a. 1 to 4 : For switching TALLY IN and OUT.
b. 5 to 8 : Used for servicing only.
8. SERIAL terminal – Not currently used, but used for serial control of camera
9. Rating label
10. MAC address label
