The following guide provides step by step instructions on how to use the 8K camera mounting system to mount the structure onto a standard lift:

MOUNTING CAMERA

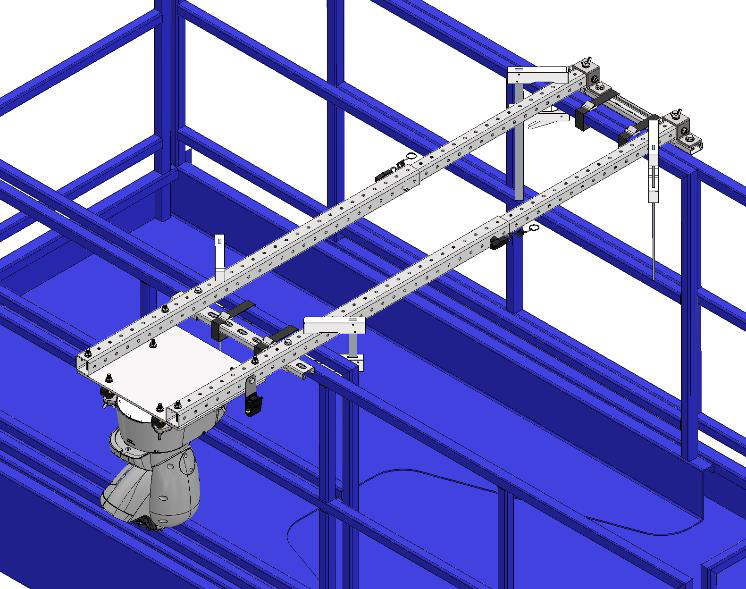

1) Extend the mount to the closest possible setting to grip the lift railings, refer to compatibility chart for orientation of mount for the lift. Centered to the railing of the lift.

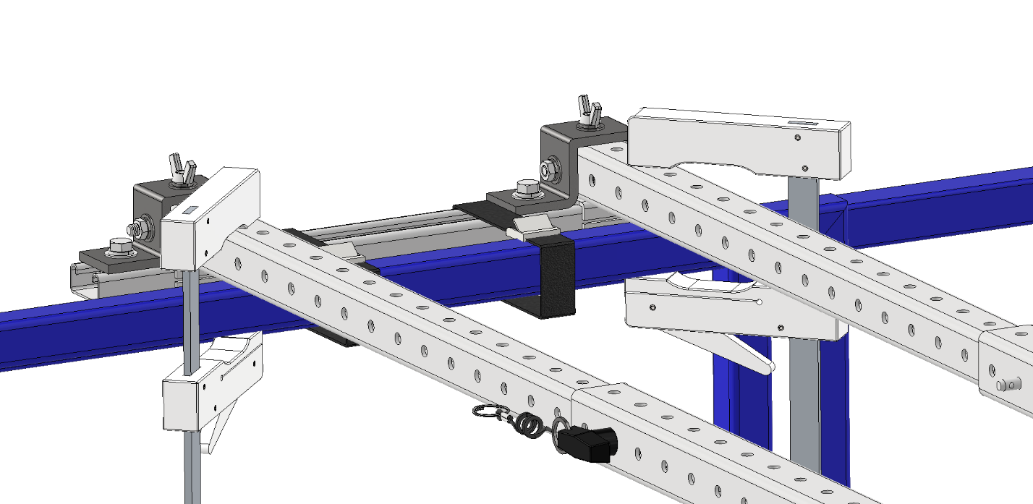

2) Clamp the front and rear braces with the provided bar clamps to the railing.

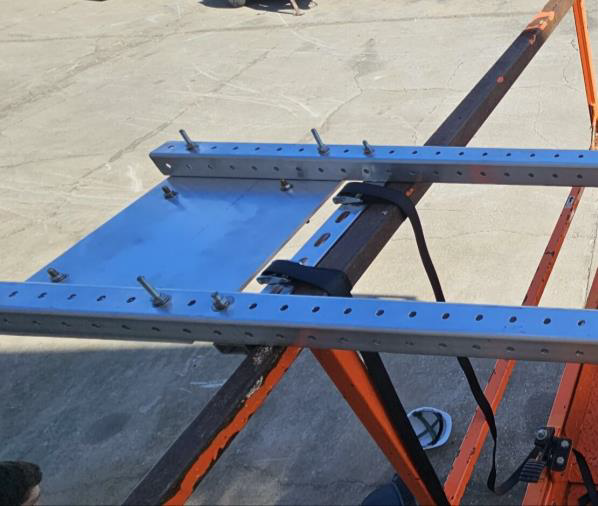

3) Use 2 of the provided straps to strap the front cross brace to the bucket railing. Depress the clip on the strap and loop the other end through the clip, make sure there are no kinks when doing so. Ensure that the straps are tightened all the way.
***Warning: make sure there are no kinks in the strapping***

4) Take 2 of the provided straps and hook the rear cross brace to the corners of the buckets to prevent the mount from sliding.

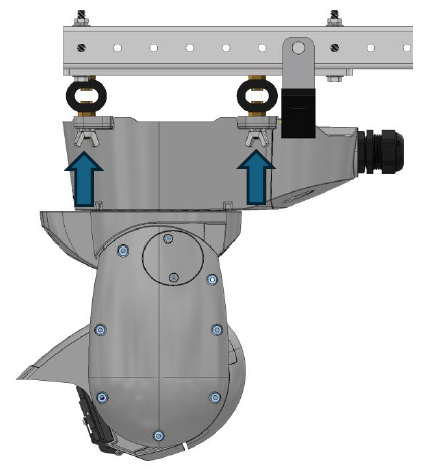

5) Attach the camera to the mount, using the provided wingnuts and washers.

6) Attach the carabiner from the safety cable on the camera to the strut on the camera mount.

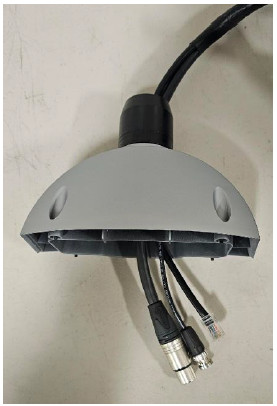

7) Pass the umbilical through the weather cover, XLR connector first.

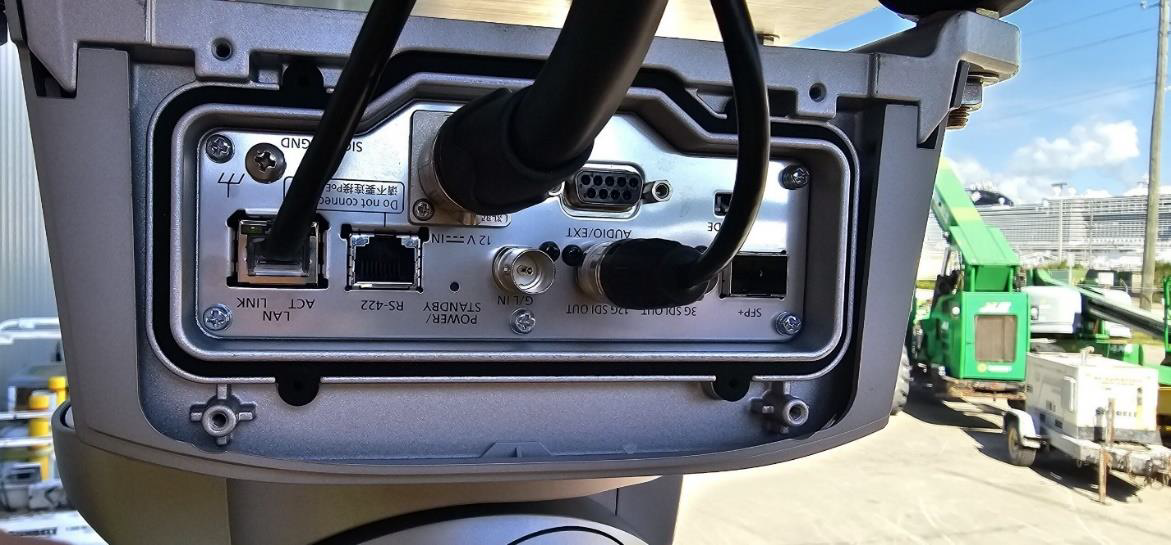

8) Connect umbilical to camera. See below for where to plug in the connections.
      a) Data > LAN
      b) XLR > 12V Power
      c) SDI > 12G SDI OUT

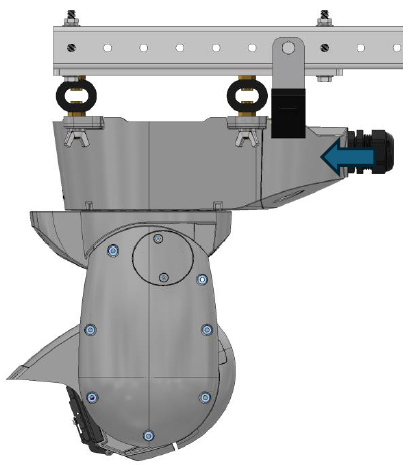

9) Reattach the weather cover to camera with the provided Allen tool.

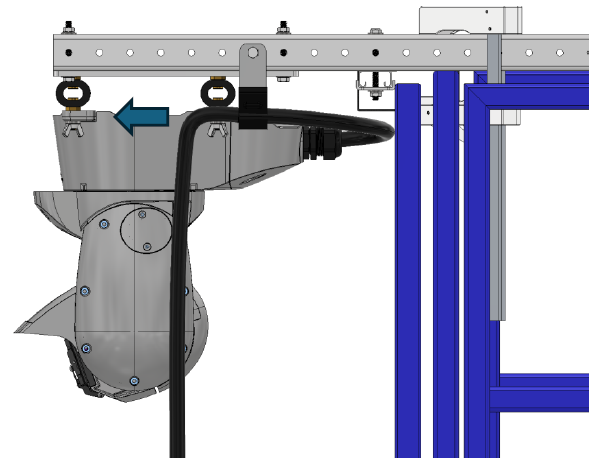

10) Loop umbilical through the rear of the strain relief clamp, so that the umbilical will sit away from the lift.

SETTING UP CONTROL CASE

1) Unlatch case and open case.

2) Unscrew the thumbscrews holding the umbilical insert. Remove insert and put the thumbscrews back in so they do not get lost.

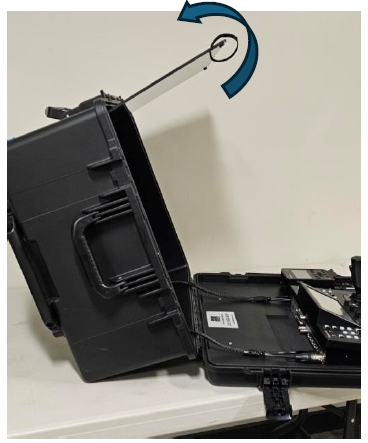

3) Lift up the sun hood until it self-latches to the magnets.

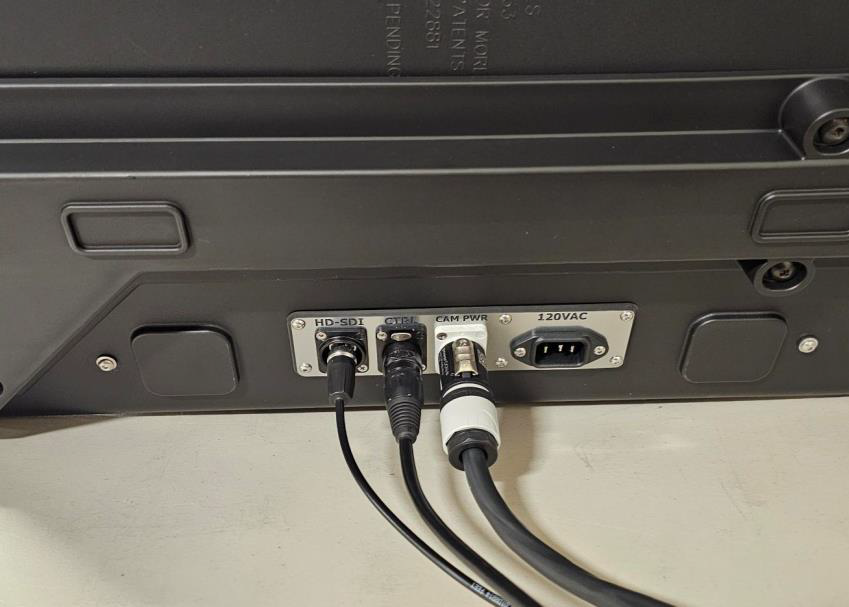

4) Connect the camera umbilical and power to the case io plate located to the lower rear.

5) Connect a fully charged battery to the Ego portable inverter.
6) Connect the control case power to the inverter
*** Warning 120VAC power only for the control case ***

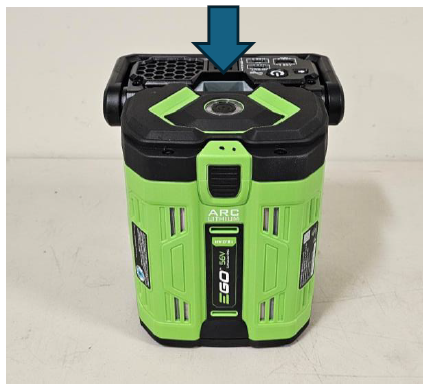

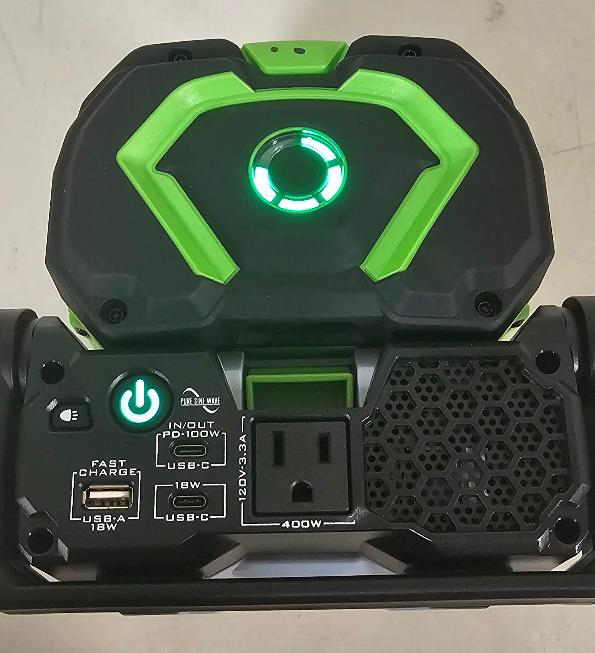

7) Hold down on the power button on the EGO Inverter to power on the battery. Battery life will display on the EGO battery with the green circle LED.
*** Charge batteries at the end of each session ***
